SRV10KRIL-IN Technical Specifications (10kVA/10kW – Double Conversion Online UPS)
Output Specifications
| Parameter |
Details |
| Output Capacity (KVA) |
10 kVA |
| Output Capacity (KW) |
10 kW |
| Output Power Factor |
1.0 |
| Output Phase |
Single Phase |
| Output Voltage |
230 V |
| Other Output Voltage |
220 / 240 V |
| Efficiency at Full Load |
Up to 94% |
| Output Frequency |
50/60 Hz ± 3 Hz |
| Transfer Time |
0 ms |
| Output Waveform Type |
Pure Sine Wave |
| Topology |
Double Conversion Online UPS |
Input Specifications
| Parameter |
Details |
| Input Voltage |
230 V |
| Other Input Voltage |
220 / 240 V |
| Input Phase |
Single Phase |
| Input Voltage Range (Operation) |
110–300 V (60% Load) |
| Full Load Input Range |
176–300 V |
| Input Frequency Range |
40–70 Hz Auto Sensing |
| Input Connection Type |
Hard Wire 3-Wire (1P + N + E) |
Batteries & Runtime
| Parameter |
Details |
| Battery Type |
Internal Lead-Acid Battery |
| Battery Voltage |
240 V |
| Battery Recharge Time |
Approx. 5 Hours |
| Battery Life |
3–5 Years |
| Battery Charger Power |
1170 W Rated |
| Runtime at Full Load |
Approx. 2 min 32 sec |
| Battery Management |
Intelligent Battery Management |
Communication & Management
| Parameter |
Details |
| LCD Display |
Multifunction LCD Status & Control Console |
| Intelligent Card Slot |
Yes |
| USB Communication |
Yes |
| RS-232 Communication |
Yes |
| Audible Alarm |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Remote Monitoring |
Optional via Network Management Card |
Physical Specifications
| Parameter |
Details |
| Form Factor |
Rackmount |
| Rack Height |
5U |
| Height |
220 mm |
| Width |
438 mm |
| Depth |
615 mm |
| Net Weight |
78 kg |
| Product Color |
Black |
Environmental Specifications
| Parameter |
Details |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-15°C to 60°C |
| Relative Humidity |
0% to 95% Non-Condensing |
| Operating Elevation |
Up to 3000 m |
| Protection Rating |
IP20 |
Other Specifications
| Parameter |
Details |
| Product Series |
APC Easy UPS On-Line SRV Series |
| Model Number |
SRV10KRIL-IN |
| Brand |
APC by Schneider Electric |
| Technology |
IGBT-Based Double Conversion Online UPS |
| Warranty |
2 Years Repair or Replace |
| Application Type |
Critical Power Protection |
Product Overview

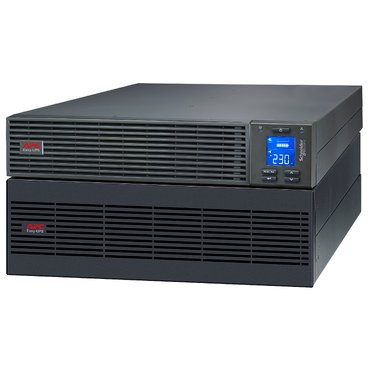

The APC SRV10KRIL-IN Easy UPS On-Line 10kVA/10kW is a high-performance rackmount UPS designed to deliver continuous power protection for critical infrastructure and enterprise applications. Featuring true double-conversion online technology, pure sine wave output, zero transfer time, built-in battery backup, and intelligent monitoring capabilities, it ensures uninterrupted operation during power disturbances. Its rackmount 5U design, LCD interface, SmartSlot connectivity, and high-efficiency performance make it an ideal solution for data centers, server rooms, telecommunications systems, industrial automation, and mission-critical business environments.
