SRC1KUXI-IN Technical Specifications (1kVA/800W – Double Conversion Online UPS)
Output Specifications
| Parameter | Details |
|---|---|
| Output Capacity (VA) | 1000 VA |
| Output Capacity (W) | 800 W |
| UPS Topology | Double Conversion Online |
| Output Voltage | 230 V |
| Other Output Voltage | 220 / 240 V |
| Output Frequency | 50/60 Hz ± 3 Hz |
| Output Voltage Distortion | Less than 2% |
| Output Waveform Type | Pure Sine Wave |
| Transfer Time | 0 ms |
| Efficiency at Full Load | Up to 90% |
Input Specifications
| Parameter | Details |
|---|---|
| Input Voltage | 230 V |
| Input Frequency Range | 40–70 Hz |
| Input Voltage Range | 110–280 V (Half Load) |
| Input Connection Type | India 3-Pin 6A Plug |
| Input Breaker Capacity | 10 A |
| Input Phase | Single Phase |
Batteries & Runtime
| Parameter | Details |
|---|---|
| Battery Type | External Battery System |
| Battery Compatibility | SMF / Flooded Batteries |
| Battery Voltage | 24 V DC |
| Battery Configuration | 2 × 12V External Batteries |
| Runtime Expansion | Yes |
| Battery Management | Intelligent Battery Charging |
| Selectable Charging Current | Yes |
Communication & Management
| Parameter | Details |
|---|---|
| Interface Ports | DB-9 RS-232, Smart Slot |
| LCD/LED Display | LED Status Display |
| Audible Alarm | Yes |
| Status Indicators | On-Line, On Battery, Replace Battery, Overload |
| Remote Management | Optional via SmartSlot |
Physical Specifications
| Parameter | Details |
|---|---|
| Height | 220 mm |
| Width | 145 mm |
| Depth | 400 mm |
| Net Weight | 5.7 kg |
| Product Color | Black |
| Form Factor | Tower |
Environmental Specifications
| Parameter | Details |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Relative Humidity | 0% to 95% Non-Condensing |
| Operating Elevation | Up to 3000 m |
| Certification | BIS |
Other Specifications
| Parameter | Details |
|---|---|
| Product Series | APC Smart-UPS RC Series |
| Model Number | SRC1KUXI-IN |
| Brand | APC by Schneider Electric |
| Technology | Double Conversion Online UPS |
| Warranty | 2 Years |
| Application Type | Critical Power Protection |
Product Overview

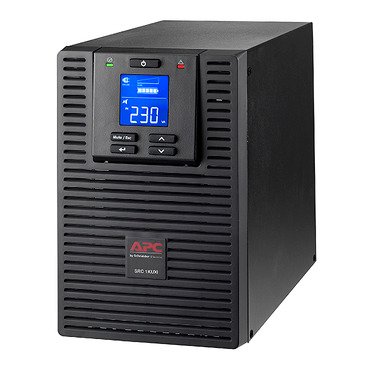

The APC SRC1KUXI-IN Smart-UPS RC 1000VA/800W is a high-performance online UPS designed to deliver continuous power protection in unstable power environments. Featuring double-conversion technology, pure sine wave output, zero transfer time, and support for external batteries, it ensures uninterrupted operation of critical systems during power disturbances. Its intelligent charging system, scalable backup runtime, SmartSlot management capabilities, and high efficiency make it an ideal solution for servers, networking devices, office equipment, security systems, and business-critical infrastructure.
