SRC1KI-IN Technical Specifications (1kVA/800W – Double Conversion Online UPS)
Output Specifications
| Parameter |
Details |
| Output Capacity (VA) |
1000 VA |
| Output Capacity (W) |
800 W |
| Output Power Factor |
0.8 |
| UPS Topology |
Double Conversion Online |
| Output Voltage |
230 V |
| Other Output Voltage |
220 / 240 V |
| Output Frequency |
50/60 Hz ± 3 Hz |
| Output Voltage Distortion |
Less than 2% |
| Output Waveform Type |
Pure Sine Wave |
| Transfer Time |
0 ms |
| Efficiency at Full Load |
Up to 90% |
Input Specifications
| Parameter |
Details |
| Input Voltage |
230 V |
| Input Frequency Range |
40–70 Hz |
| Input Voltage Range |
110–280 V (Half Load) |
| Input Phase |
Single Phase |
| Input Connection Type |
India 3-Pin 6A Plug |
| Switching Current Capacity |
10 A |
Batteries & Runtime
| Parameter |
Details |
| Battery Type |
Maintenance-Free Sealed Lead-Acid Battery |
| Battery Configuration |
Internal Battery |
| Battery Recharge Time |
Approx. 6 Hours |
| Battery Capacity |
324 VAh |
| Runtime at Full Load |
Approx. 8 Minutes |
| Runtime at Half Load |
Approx. 21 Minutes |
| Battery Management |
Intelligent Battery Charging |
Communication & Management
| Parameter |
Details |
| Display Type |
LED Status Display |
| Status Indicators |
On-Line, On Battery, Replace Battery, Overload |
| RS-232 Communication |
Yes |
| USB Communication |
Yes |
| SmartSlot |
Yes |
| Audible Alarm |
Yes |
| Remote Management |
Optional via SmartSlot |
Physical Specifications
| Parameter |
Details |
| Height |
220 mm |
| Width |
145 mm |
| Depth |
400 mm |
| Net Weight |
13.5 kg |
| Product Color |
Black |
| Form Factor |
Tower |
Environmental Specifications
| Parameter |
Details |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
| Relative Humidity |
0% to 95% Non-Condensing |
| Operating Elevation |
Up to 3000 m |
Other Specifications
| Parameter |
Details |
| Product Series |
APC Smart-UPS RC Series |
| Model Number |
SRC1KI-IN |
| Brand |
APC by Schneider Electric |
| Technology |
Double Conversion Online UPS |
| Warranty |
2 Years Repair or Replace |
| Application Type |
Critical Power Protection |
| Bypass Type |
Built-In Automatic Bypass |
Product Overview

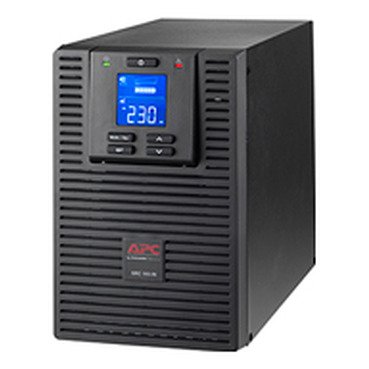

The APC SRC1KI-IN Smart-UPS RC 1000VA/800W is a high-performance online UPS designed for environments requiring continuous and reliable power protection. Featuring double-conversion online technology, pure sine wave output, built-in battery backup, and intelligent battery management, it ensures uninterrupted operation during power disturbances. With SmartSlot connectivity, USB and RS-232 communication, built-in bypass functionality, and enterprise-grade reliability, the SRC1KI-IN is an ideal solution for servers, networking equipment, telecom systems, security infrastructure, and other mission-critical applications.
