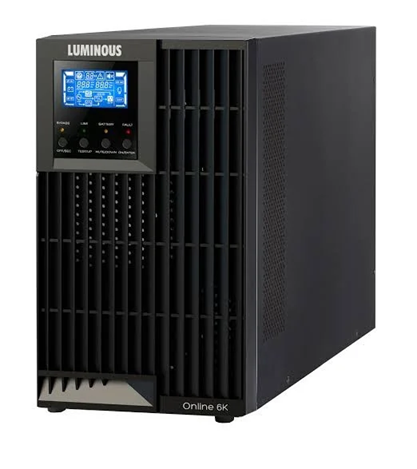

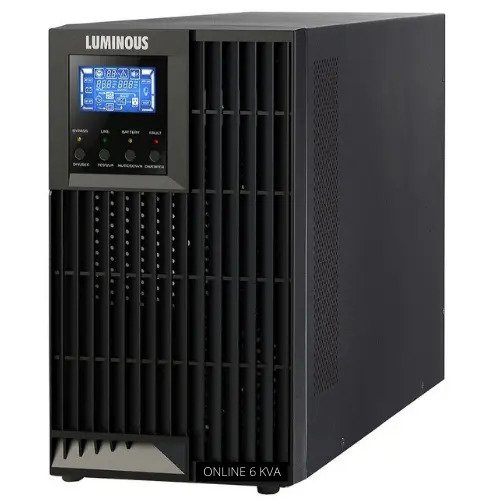

Luminous LD6000 6kVA INX Online UPS

Luminous LD6000-INX Online UPS – Product Specification

Capacity

• 6000 VA / 4800 W

INPUT

• Voltage Range:
  • Low Line Loss: 110 VAC ±3% @ 50% load
  • Low Line Loss: 176 VAC ±3% @ 100% load
  • Low Line Comeback: Loss Voltage + 10V
  • High Line Loss: 280 VAC ±3%
  • High Line Comeback: Loss Voltage – 10V
• Frequency Range:
  • 46–54 Hz (50 Hz system)
  • 56–64 Hz (60 Hz system)
• Phase: Single phase with ground
• Power Factor: ≥ 0.99 @ 100% load
• OVCD: Cut-off at <100 VAC and >280 VAC

OUTPUT

• Output Voltage: 208/220/230/240 VAC (selectable)
• Voltage Regulation: ±1%
• Frequency (Sync Range):
  • 46–54 Hz (50 Hz)
  • 56–64 Hz (60 Hz)
• Frequency (Battery Mode): 50 Hz ±0.1 Hz / 60 Hz ±0.1 Hz
• Waveform: Pure sinewave
• Overload Protection:
  • AC Mode:
    • 105–110%: 30 min
    • 110–130%: 5 min
    • 130%: 10 sec
  • Battery Mode:
    • 105–110%: 3 min
    • 110–130%: 30 sec
    • 130%: 10 sec
• Harmonic Distortion:
  • ≤3% THD (linear load)
  • ≤5% THD (non-linear load)
• Transfer Time:
  • Line → Battery: 0 ms
  • Inverter → Bypass: 0 ms

EFFICIENCY

• AC Mode: >92%
• Battery Mode: >90%

BATTERY

• Type: Sealed Maintenance-Free Batteries
• Number of Batteries: 16
• Charging Current: 1A, 2A, 4A, 6A (adjustable), 4A default
• Charging Voltage: 218.4 VDC ±1%

PHYSICAL

• Dimensions (D×W×H): 369 × 190 × 318 mm
• Net Weight: 12 kg

ENVIRONMENT

• Operating Temperature: 0–40°C
• Humidity: <95% RH, non-condensing
• Altitude: <1000 m
• Noise Level: <55 dB @ 1 meter

MANAGEMENT

• Communication Ports: RS-232 / USB
• OS Support: Windows 2000/XP/Vista/7/8/2003/2008, Linux, Unix, MAC

Optional: SNMP card for remote monitoring via browser
