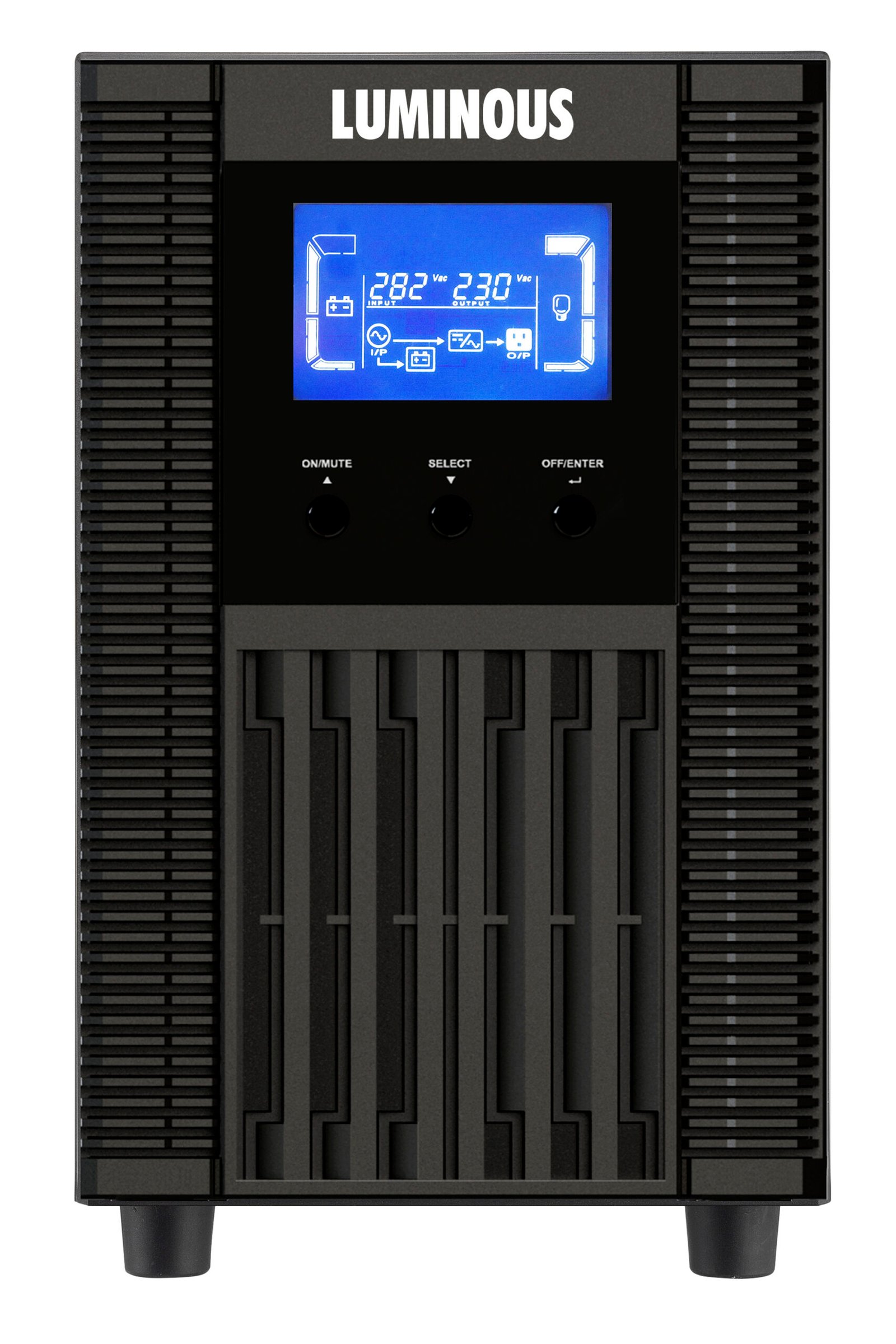

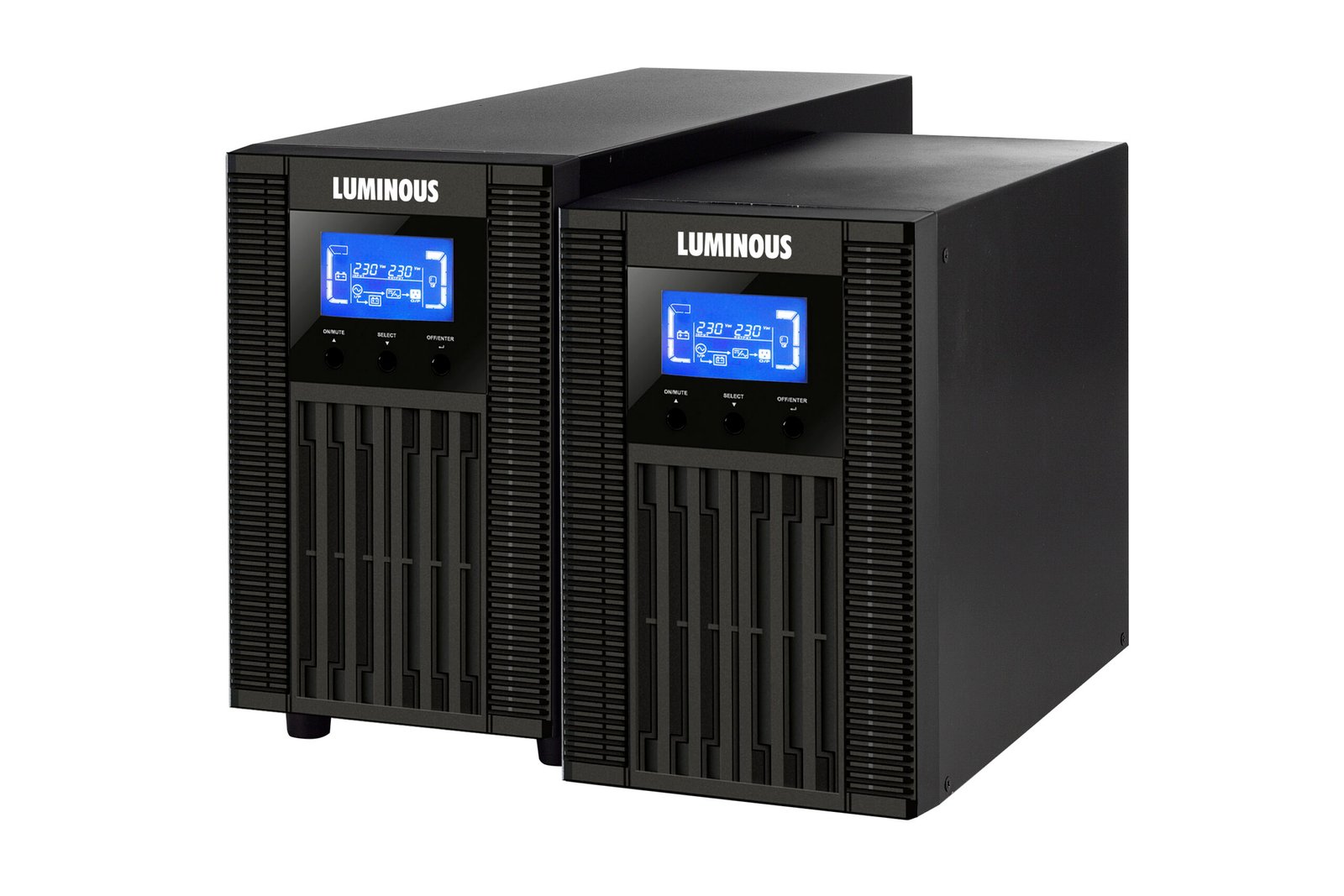

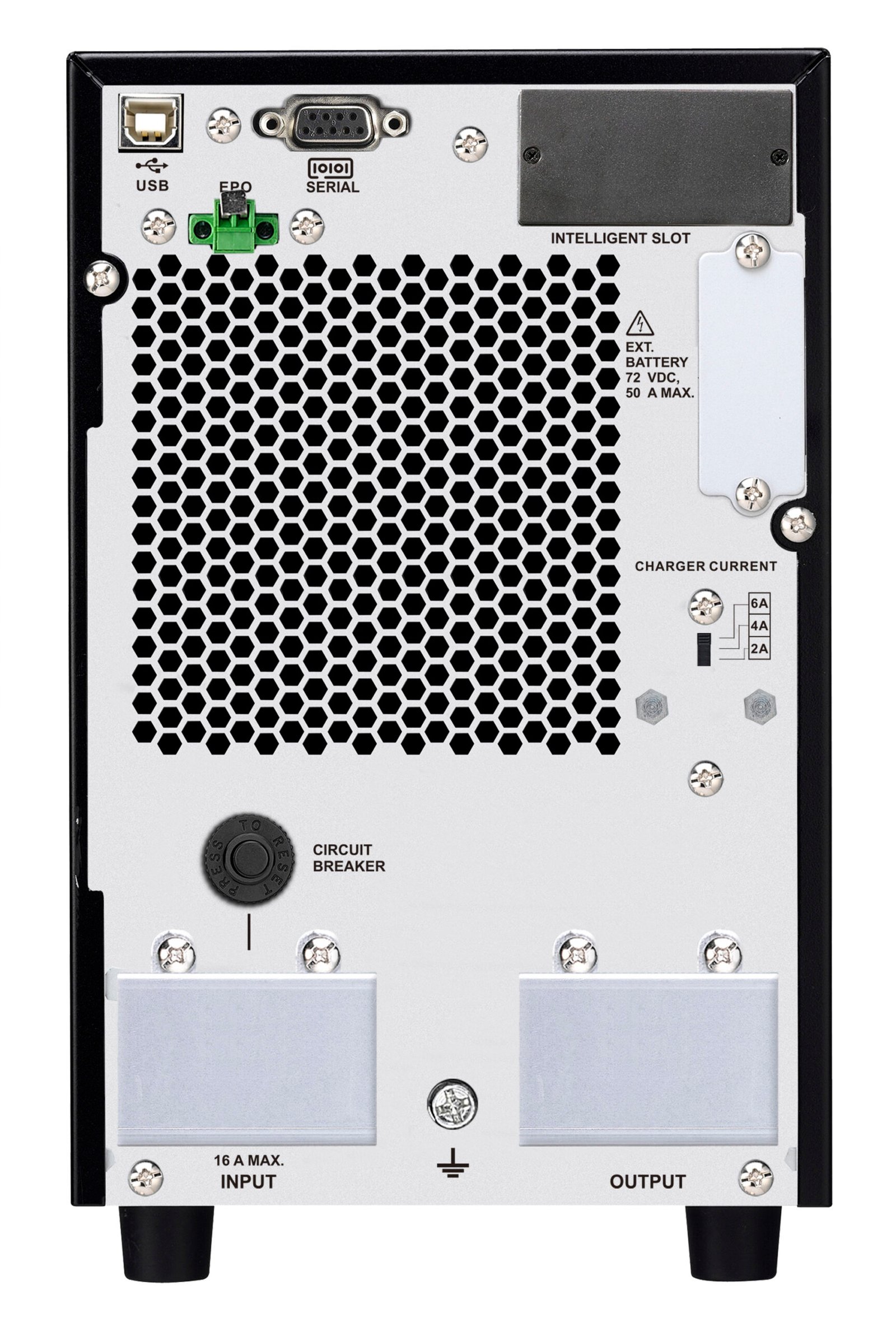

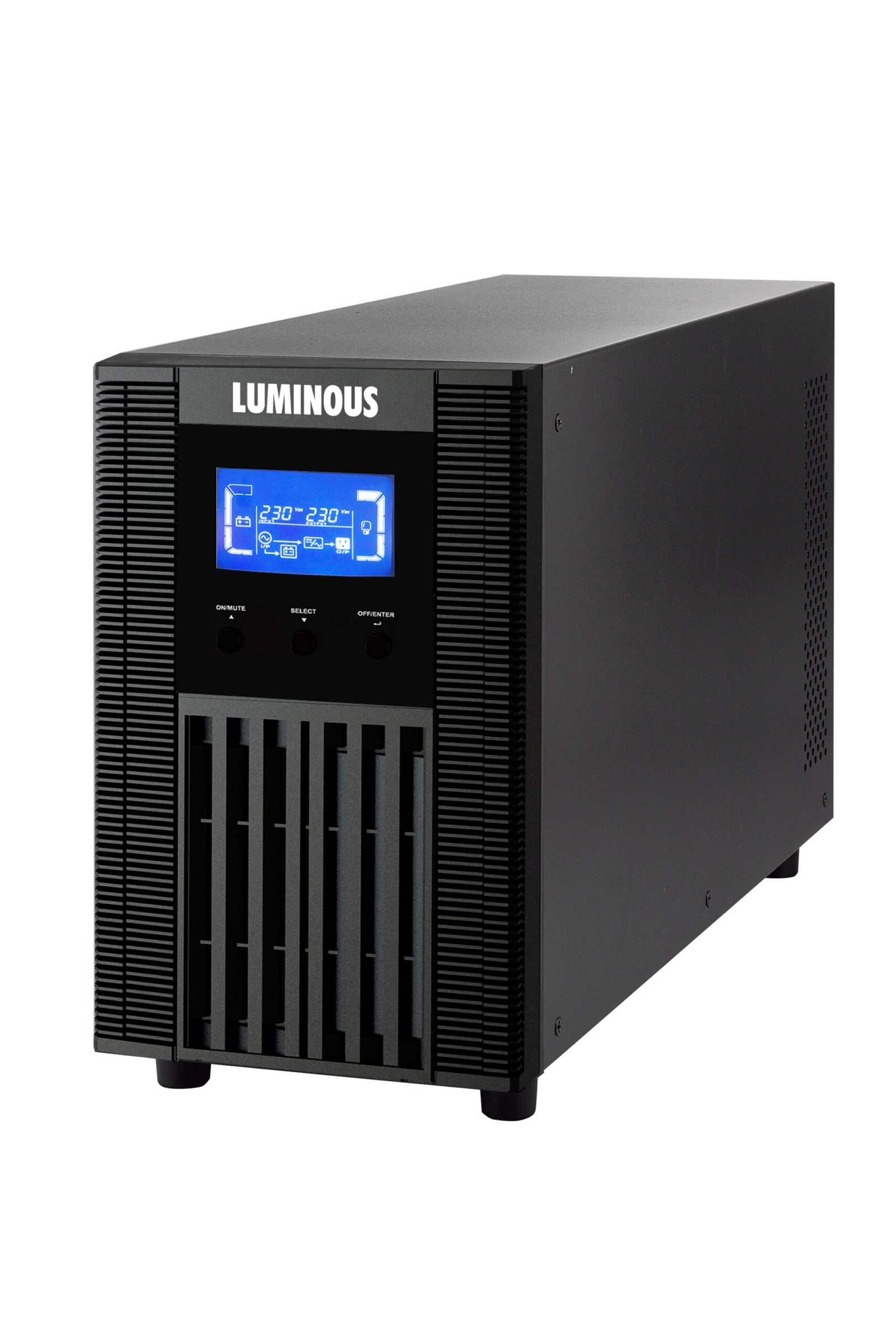

Luminous LD3000 INX Online UPS

Luminous LD3000-INX Online UPS – Product Specification

Capacity

• 3000 VA / 2400 W

Input

• Voltage Range: 110–300 VAC
• Low Line Transfer: 160/140/120/110 VAC ±5% (based on load %)
• Low Line Comeback: 175/155/135/125 VAC ±5%
• High Line Transfer: 280 VAC ±5%
• High Line Comeback: 270 VAC ±5%
• Frequency Range: 40–70 Hz
• Phase: Single phase with ground
• Power Factor: ≥ 0.99
• OVCD: Cut-off at <100 VAC and >280 VAC

Output

• Voltage: 200/208/220/230 (Default)/240 VAC
• Voltage Regulation: ±1% (Battery mode)
• Frequency (Sync Mode): 47–53 Hz / 57–63 Hz
• Frequency (Battery Mode): 50 Hz ±0.25 Hz / 60 Hz ±0.3 Hz
• Waveform: Pure sine wave
• Overload Protection:
  • 100–110%: Audible warning
  • 110–130%: Shutdown in 60 sec or transfer to bypass
  • 130%: Immediate shutdown or bypass
• Harmonic Distortion:
  • ≤3% THD (linear load)
  • ≤6% THD (non-linear load)

Efficiency

• AC Mode: >90%
• Transfer Time:
  • AC to Battery: Zero
  • Inverter to Bypass: 4 ms (typical)

Battery

• Type: 12V SMF/VRLA
• DC Voltage: 72 V
• Charging Current: 1A / 2A / 4A / 6A (default), optional 12A
• Charging Voltage: 82.1 VDC ±1%

Physical

• Dimensions: 397 × 145 × 220 mm
• Net Weight: 7.4 kg

Environment

• Operating Humidity: 20–90% RH (non-condensing)
• Operating Temperature: 0–40°C
• Noise Level: <50 dBA @ 1 meter

Management

• Interface: Smart RS-232 or USB
• OS Support: Windows 2000–7, Linux, Unix, MAC
• Optional: SNMP for remote management via browser
