Easy PDU Metered 1U 16A 230V (8)C13

In stock

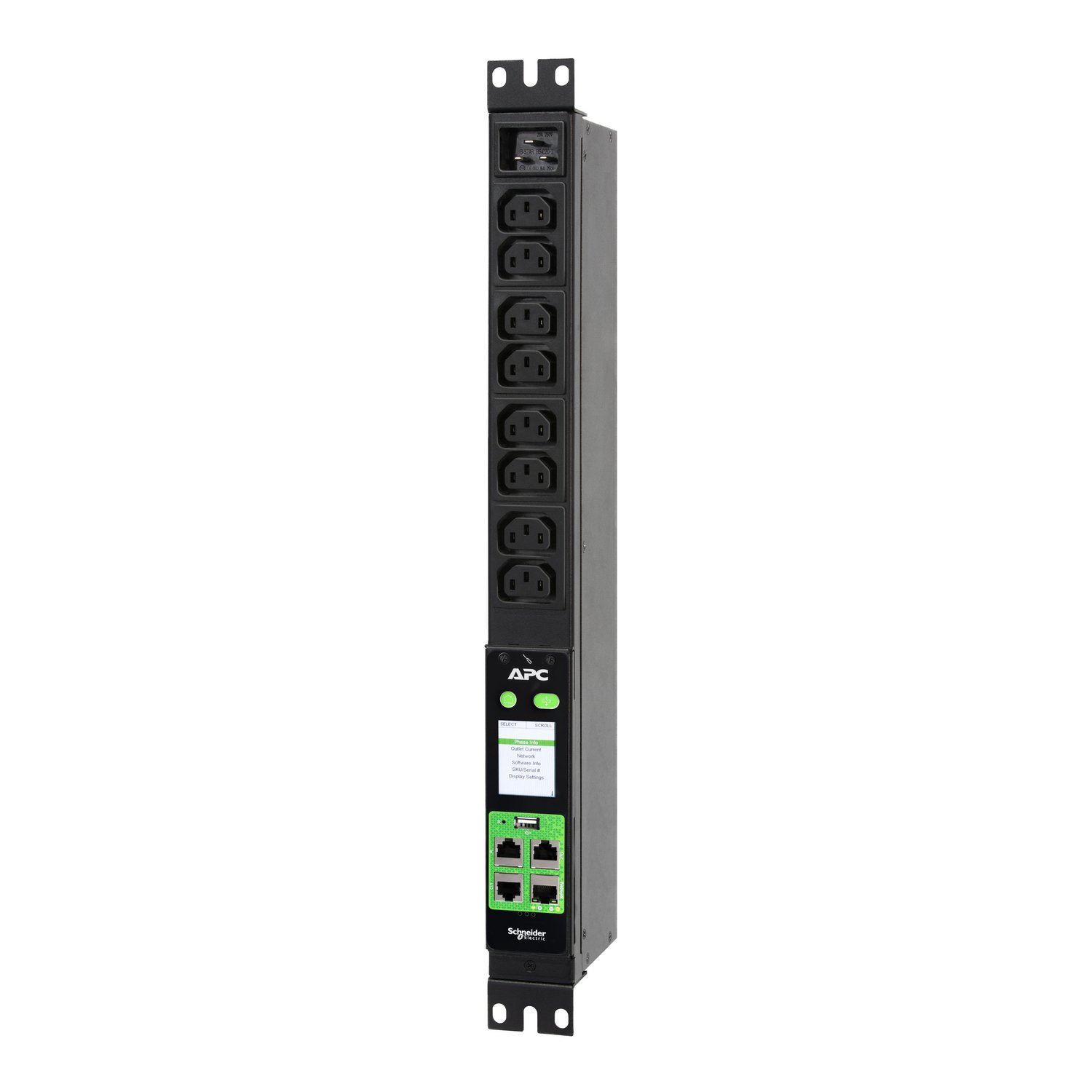

Schneider Easy Metered Rack PDU EPDU2016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU2016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The green packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +50°C temperation range and comes with 2 year of standard warranty. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

SKU: EPDU2016M Category: Brand:
Main
Colour Black
Product or component type PDU
PDU type Metered
Cord length 2.49 m
Provided equipment Horizontal mounting brackets
Complementary
Input Voltage 230 V 1 phase
Height 44 mm
Width 482 mm
Output Voltage 208 V
Depth 100 mm
Net weight 1.7 kg
Mounting location Front
Mounting preference No preference
Input Plug Type IEC 60320 C20
Mounting mode Rack-mounted
Rack units 1U
Mounting position Horizontal
Input current limits 16 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Outlet type and quantity 8 IEC 60320 C13
Environment
Product certifications CE
UKCA
Ambient air temperature for operation -5…50 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
Ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 6.8 cm
Package 1 Width 21 cm
Package 1 Length 57 cm
Package 1 Weight 3 kg
Contractual warranty
Warranty 2 year repair or replace
