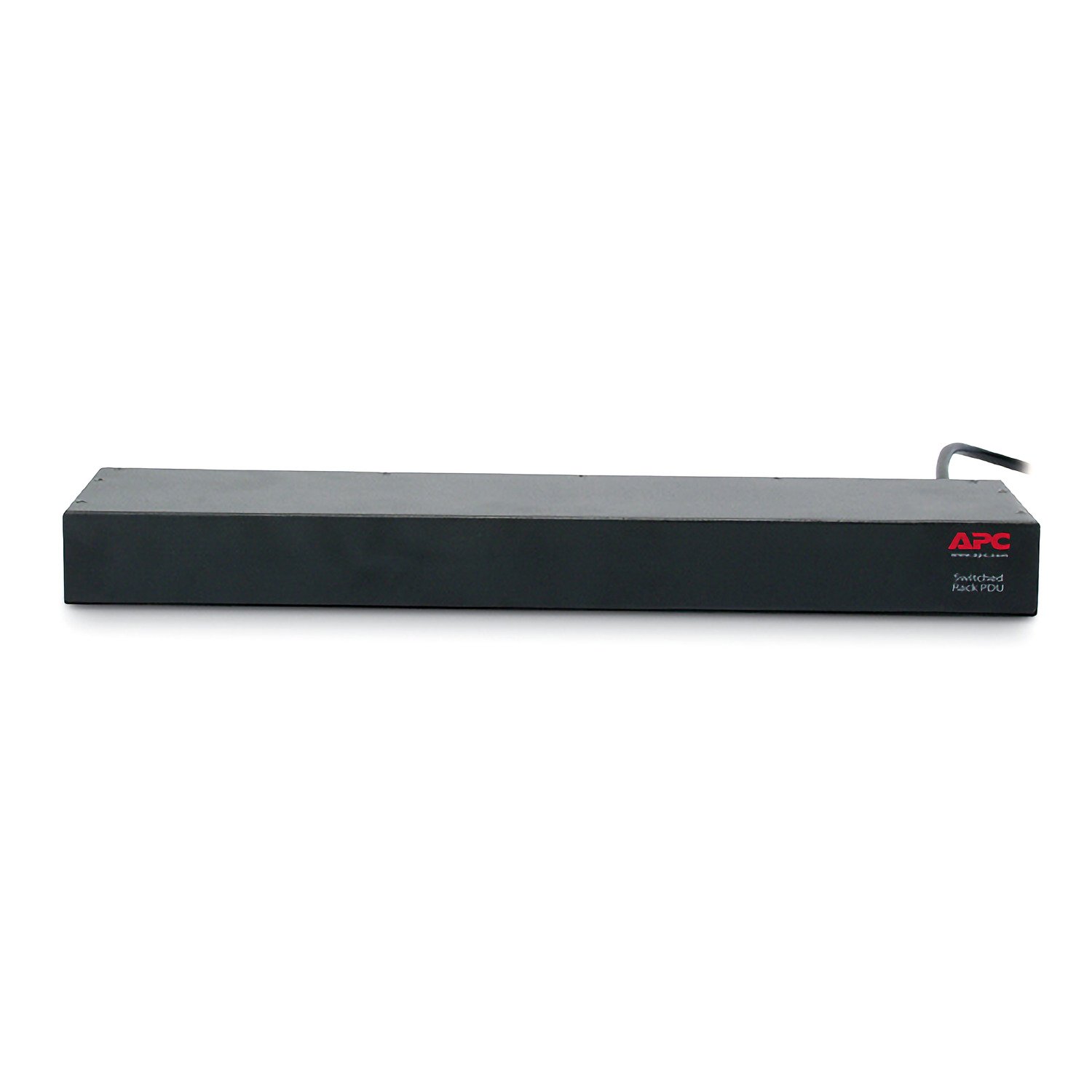

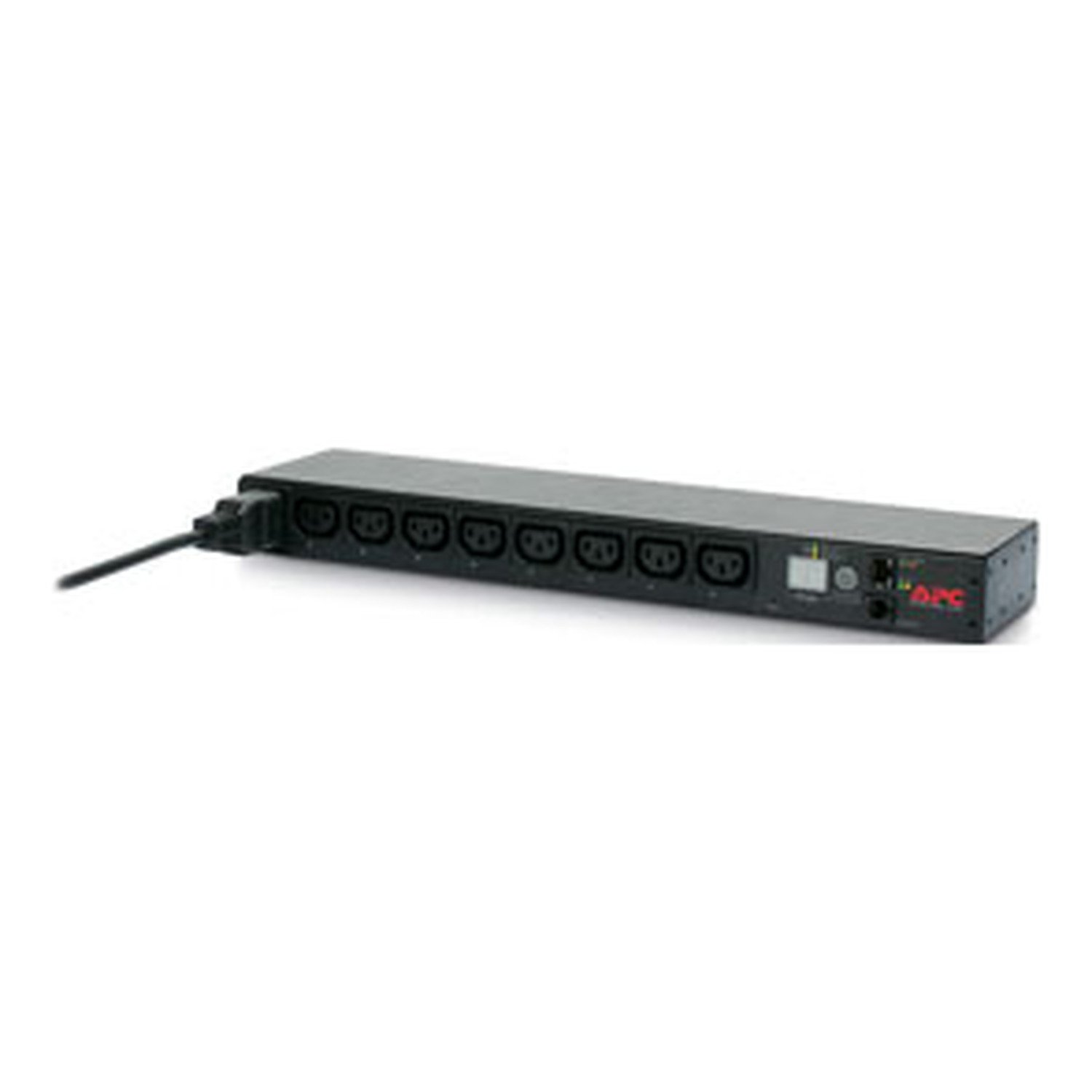

| Presentation | This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install. |
|---|---|
| Lead time | Usually in Stock |
| Colour | Black |
|---|---|
| Product or component type | PDU |
| PDU type | Switched |
| Cord length | 2.49 m |
| Number of cables | 1 |
| Provided equipment | Installation guide Rack mounting brackets User manual |
| Input Voltage | 200 V 208 V 230 V |
|---|---|
| Height | 44 mm |
| Width | 445 mm |
| Output Voltage | 208 V 230 V |
| Depth | 108 mm |
| Net weight | 2.27 kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60320 C20 |
| Mounting mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| [In] rated current | 16 A |
| Permissible voltage | 200…240 V |
| Input current limits | 20 A |
| Load capacity | 3680 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 8 IEC 60320 C13 |
| Product certifications | cUL listed CE CSA GOST IRAM MIC UL listed VDE VCCI |
|---|---|
| Standards | EN 55022 class A EN 55024 EN 61000-3-2 EN 61000-3-3 UL 60950 |
| Ambient air temperature for operation | 0…45 °C |
| Relative humidity | 0…95 % |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15240 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 34.3 cm |
| Package 1 Length | 47 cm |
| Package 1 Weight | 3.45 kg |
| Warranty | 2 years repair or replace |
|---|
