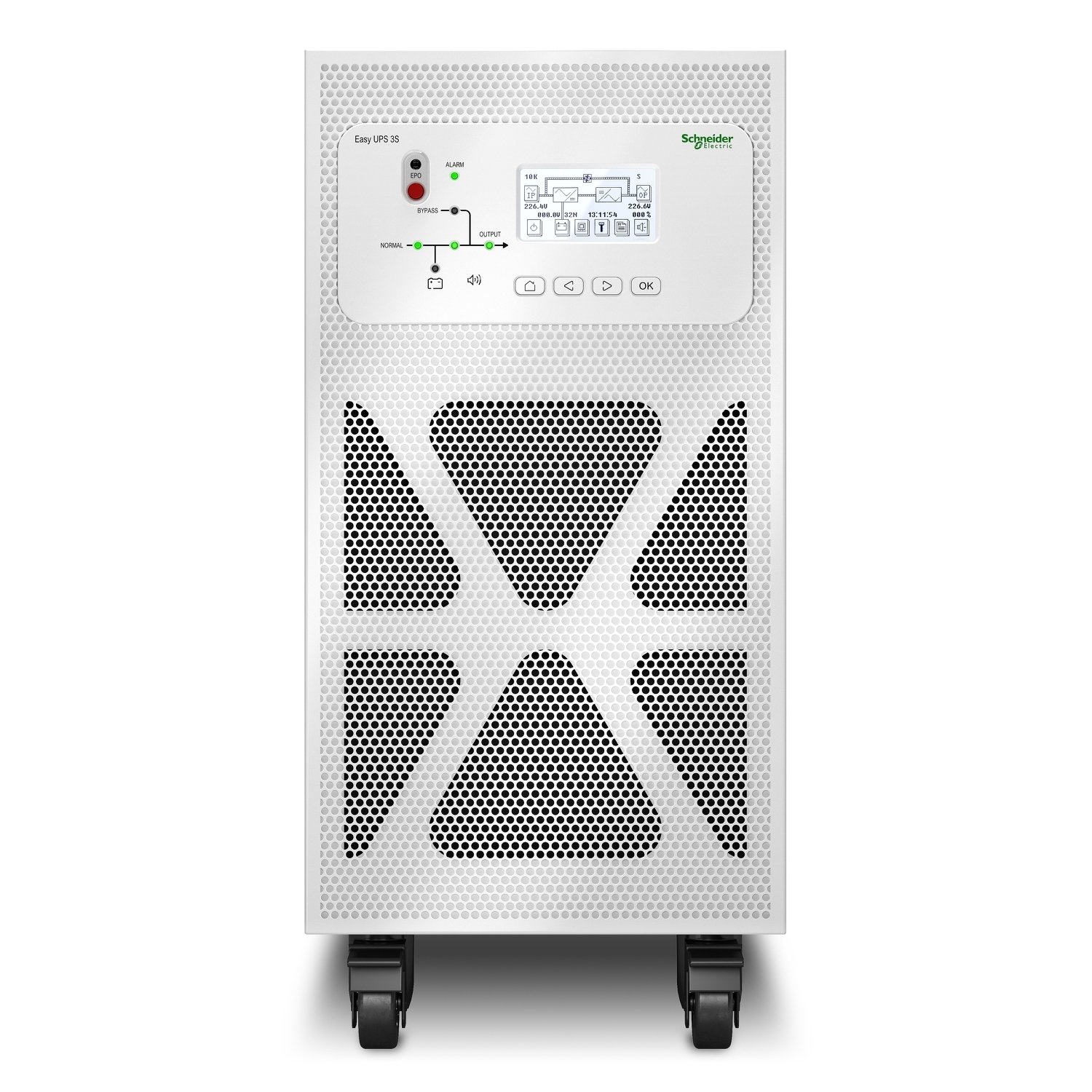

APC Easy UPS 3S 10 kVA 400 V 3:3 UPS for external batteries
$500.00
Martech Info Systems is a trusted and authorized supplier of Schneider Electric Easy UPS 3S that delivers reliable power protection for small and medium businesses. Ranging from 10 to 40 kVA, it offers high efficiency up to 96% in double conversion mode and 99% in ECO mode. With compact design, robust performance, and easy installation, it ensures uninterrupted operations in data centers, healthcare, and commercial facilities.
Description
Schneider Electric Easy UPS 3S – Technical Specifications
| Category | Specifications |
|---|---|
| Power Rating | 10, 15, 20, 30, 40 kVA (kW = kVA) |
| Phase Options | 3:1 – 10/15/20/30 kVA 3:3 – 10/15/20/30/40 kVA |
| Input Voltage | 380/400/415 V (3-phase + Neutral) |
| Input Frequency | 45 – 65 Hz |
| Input Power Factor | >0.99 |
| THDi | <3% (10 kVA) <4% (15–40 kVA) |
| Input Voltage Range | 304 – 477 V at full load |
| Dual Mains Input | Yes (default: single mains input) |
| Output Voltage | 3:1 – 220/230/240 V 3:3 – 380/400/415 V |
| Efficiency | Up to 96% (double conversion) Up to 99% (ECO mode) |
| Overload Capacity | 130% for 10 min 130–150% for 1 min |
| Output Voltage Tolerance | ±1% |
| Battery Type | VRLA (Valve-Regulated Lead Acid) |
| Nominal DC Bus | ±192 to ±240 V |
| Charging Power | Selectable 1–20% of output power |
| Communication | RS485, Dry contacts, Ethernet (SNMP, Modbus TCP/IP, BACnet) |
| Control Panel | Multi-function LCD, status & display console |
| External Battery Models | 10–15 kVA: 530×250×700 mm / 36–50 kg 20–30 kVA: 770×250×800 mm / 58–77 kg 40 kVA: 770×250×900 mm / 70–86 kg |
| Internal Battery Models | 10–20 kVA: 1400×380×928 mm / 112–158 kg 30–40 kVA: 1400×500×969 mm / 152–195 kg |
| Battery Module Weight | 27–28 kg per module |
| Operating Temperature | 0°C to 40°C |
| Humidity | 0–95% non-condensing |
| Elevation | 0–1000 m at 100% load |
| Noise Level | 10–20 kVA: 60 dBA 30–40 kVA: 63 dBA |
| Protection Class | IP20 |
| Regulatory Compliance | IEC/EN 62040-1 (Safety), IEC 62040-2 (EMC), IEC 62040-3 (Performance), IEC 62040-4 (Environmental) |
| Markings | CE, RCM, EAC, WEEE |
Specification
Additional information
| KVA Rating | 10KVA |
|---|
