AET NX COB Ultra – Indoor Fine Pitch LED Display with Chip-on-Board Technology, High Brightness, Seamless Visuals, and Robust Reliability

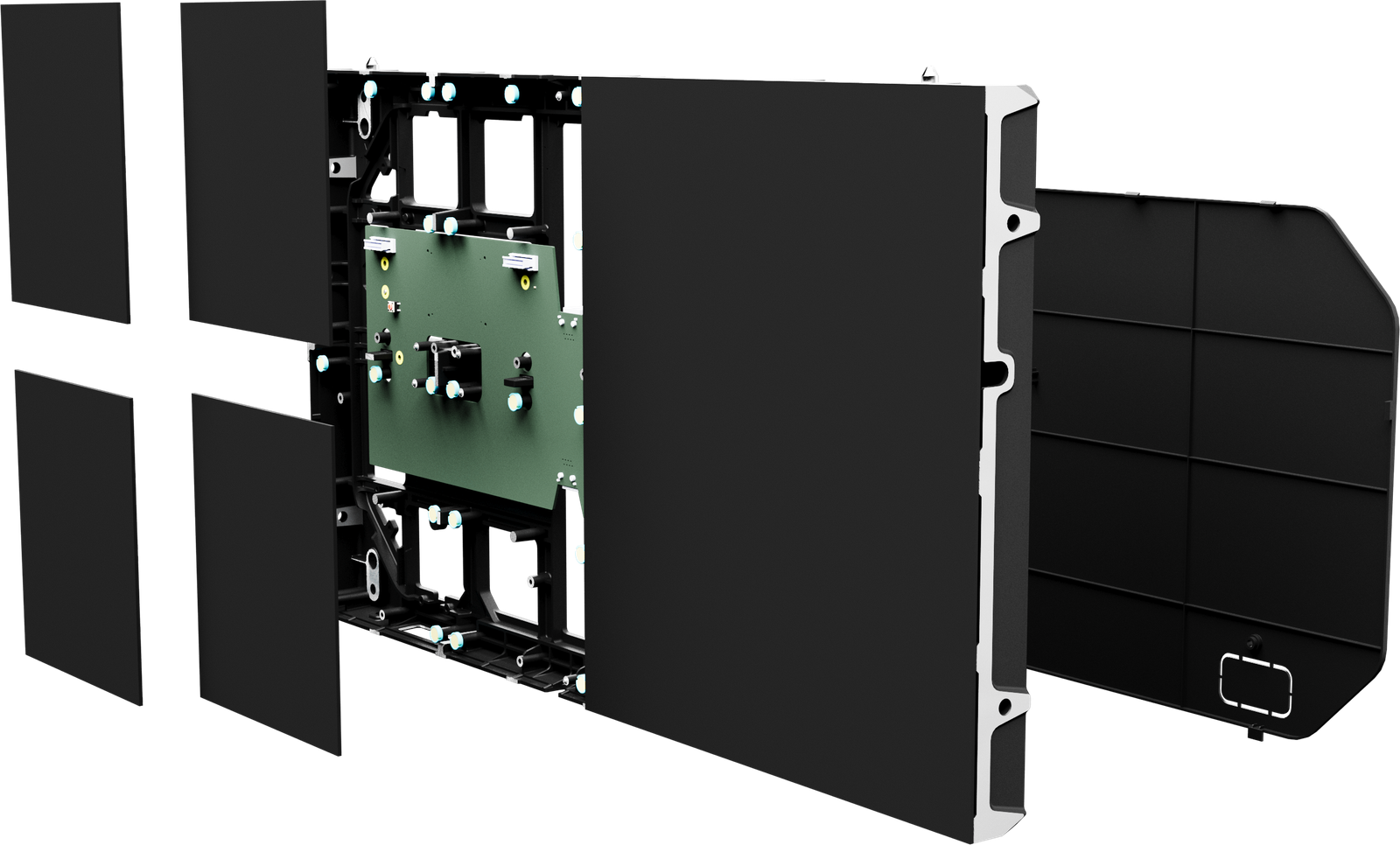

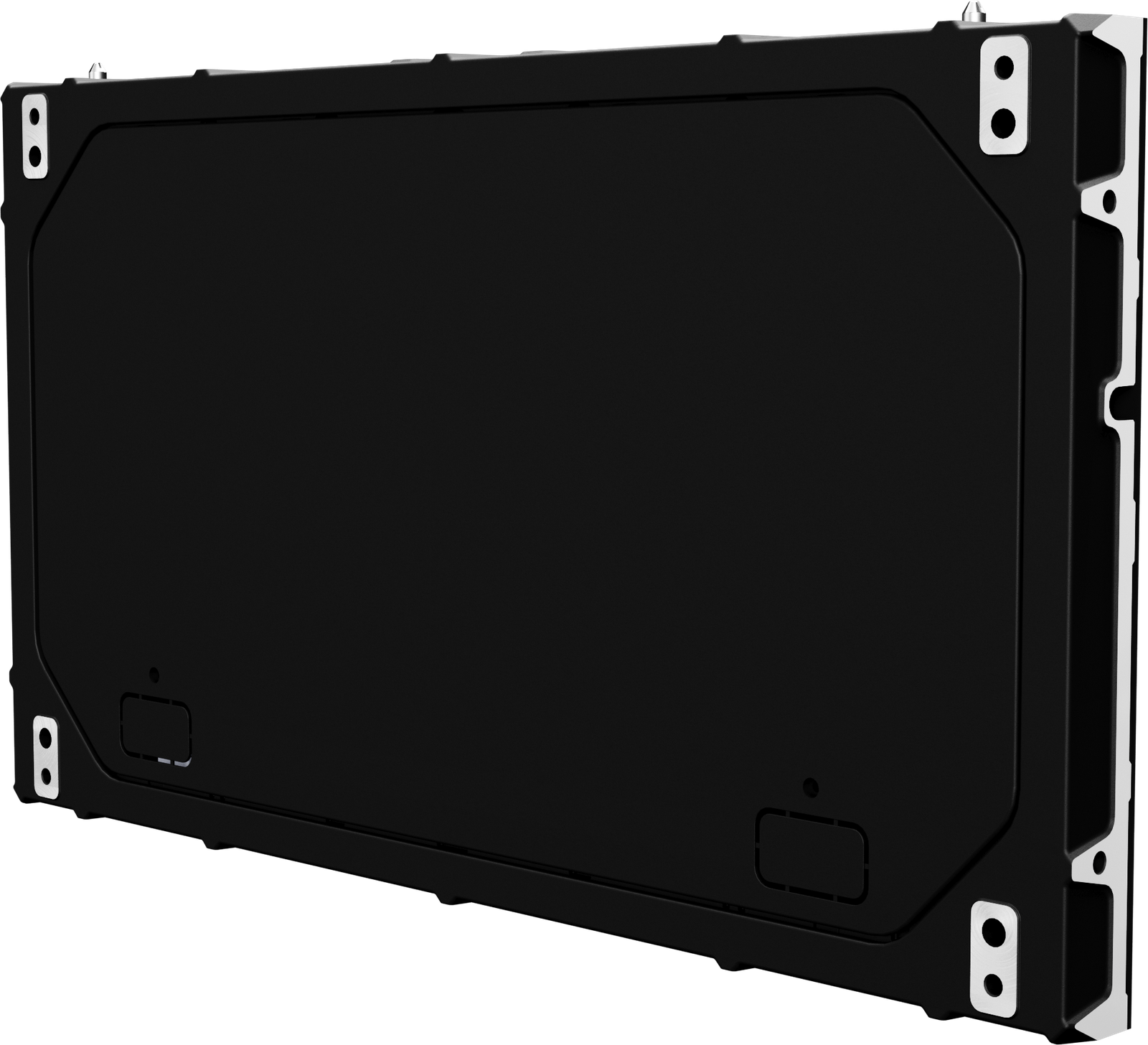

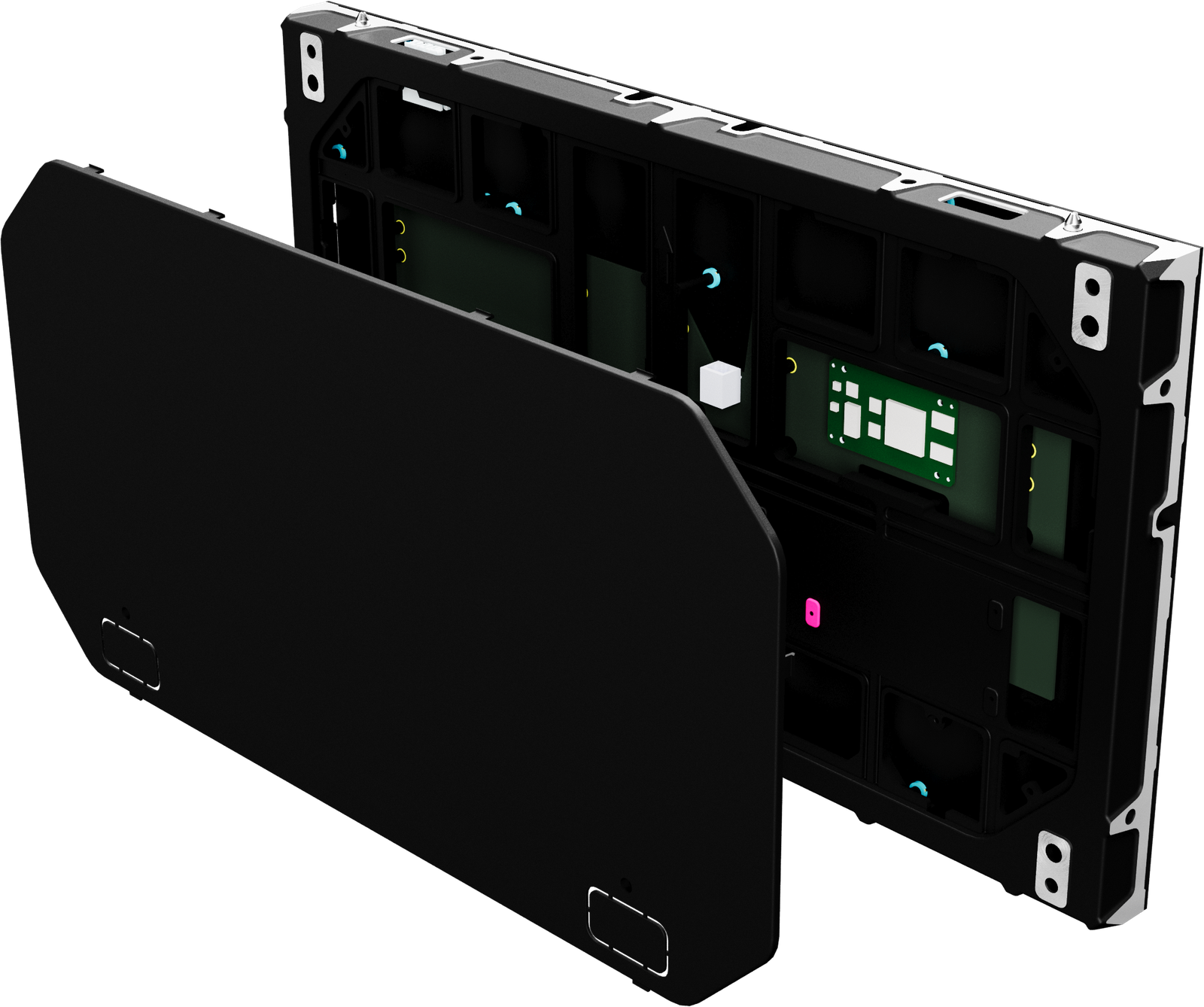

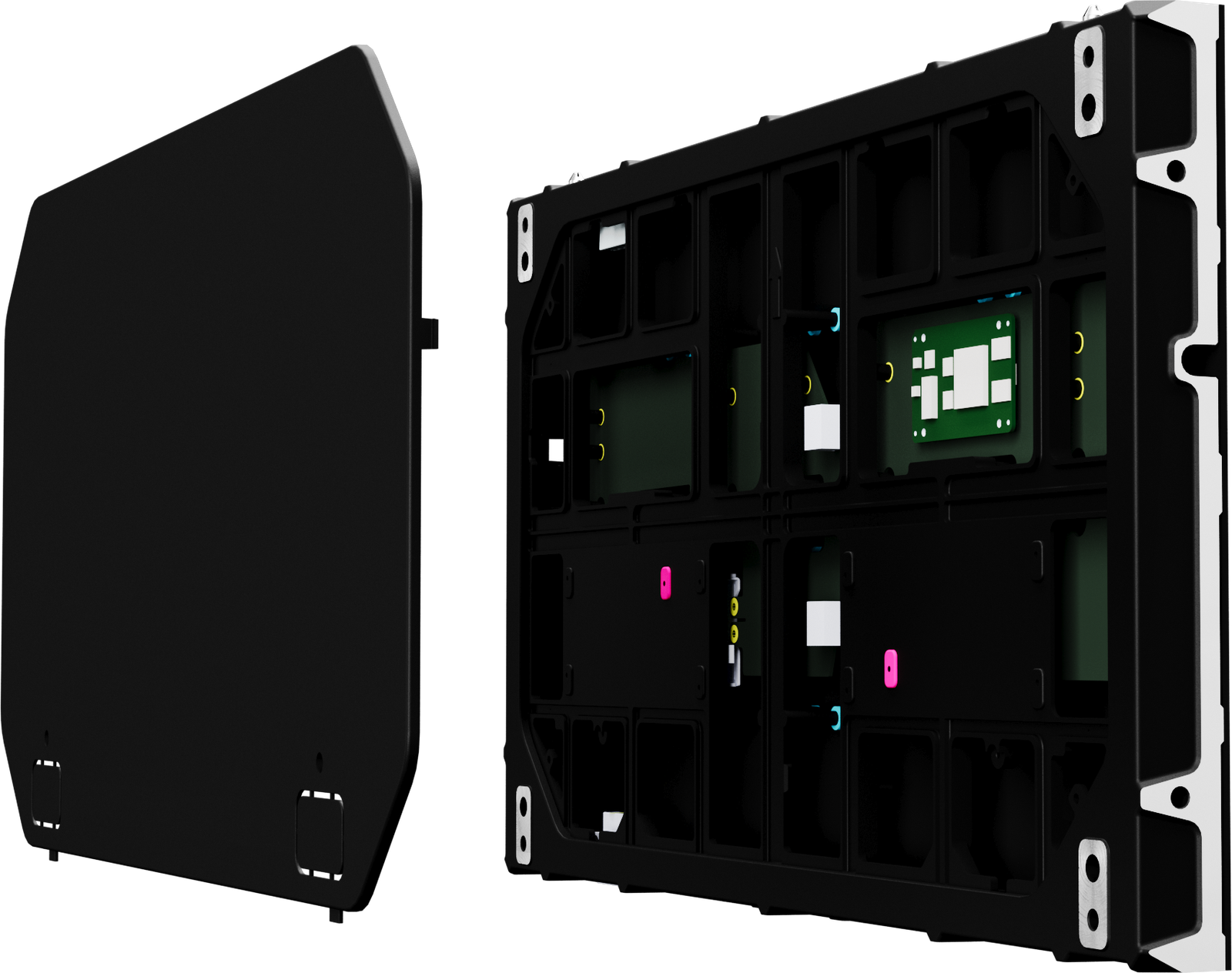

AET NX COB Ultra – Indoor Fine Pitch LED Display

The AET NX COB Ultra is a premium indoor fine-pitch LED display designed with advanced Chip-on-Board (COB) technology. Built for applications that demand ultra-high visual performance, this display ensures exceptional brightness, wide colour gamut, seamless splicing, and long-term durability. With robust protection against dust and damage, the NX COB Ultra is ideal for corporate, control rooms, broadcast studios, retail, and premium indoor environments.

Key Features

• Indoor Application – Perfect for control rooms, conference halls, studios, and retail environments.

• Fine Pixel Pitch Options – Delivers ultra-clear visuals with multiple pitch configurations (e.g., P0.9, P1.2, P1.5 – depending on model).

• Chip-on-Board (COB) Technology – Enhances durability, dust resistance, and reliability.

• High Brightness & Contrast – Vivid visuals even in well-lit indoor settings.

• Seamless Splicing – Zero bezels, creating a smooth large-format video wall.

• Wide Viewing Angle – Uniform picture quality from every direction.

• Energy Efficient – Low power consumption design for 24/7 operations.

• Robust Protection – Surface resistant to scratches, dust, and accidental impact.

Specifications (typical, subject to model selection)

• Model: NX COB Ultra

• Pixel Pitch: P0.9 / P1.25 (customizable options available)

• LED Type: Chip-on-Board (COB)

• Resolution (per panel): Up to 640 × 360 pixels (varies by pitch)

• Brightness: 600 – 1000 nits (indoor optimized)

• Contrast Ratio: ≥ 5000:1

• Refresh Rate: 3840-7680 Hz

• Viewing Angle: 160° (H) / 160° (V)

• Weight: Approx. 4.5 kg per panel (lightweight design)

• Thickness: ≤ 35 mm (ultra-slim profile)

• Power Consumption: Avg. 67–200 W per panel (varies by pitch)

• Operating Temperature: -10°C to +40°C

• Installation: Front maintenance, wall-mounted or stacked

• Certifications: CE, RoHS, CCC

Applications

• Control Rooms & Command Centers

• Corporate Lobbies & Boardrooms

• Broadcast Studios

• High-End Retail Displays

• Exhibition & Event Backdrops

• Education & Conference Halls
