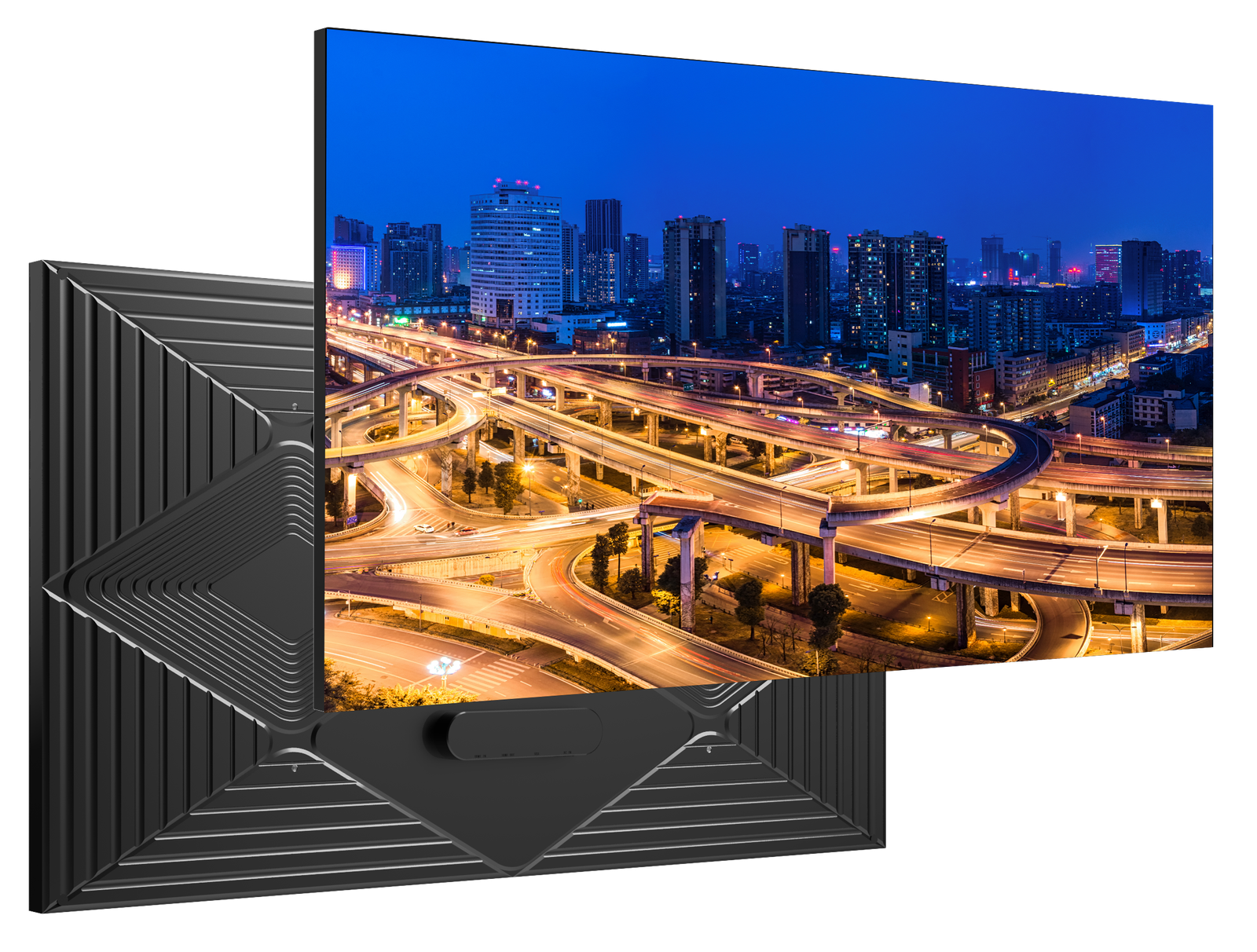

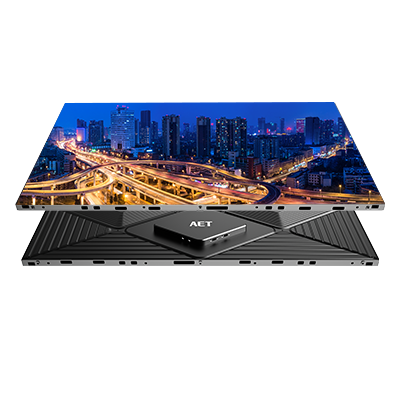

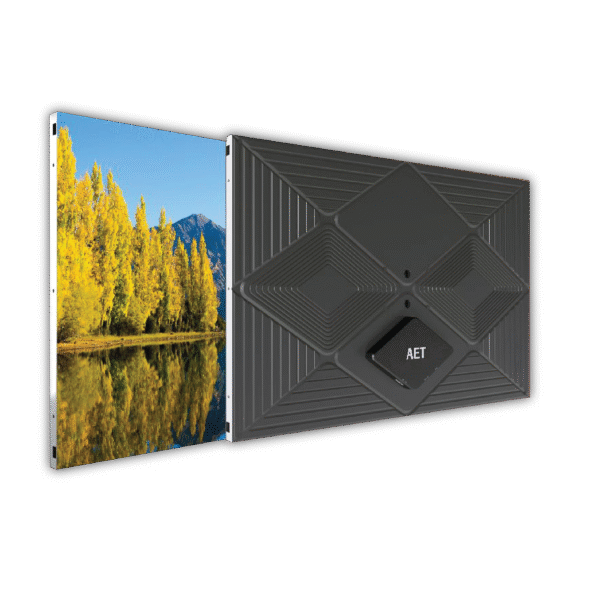

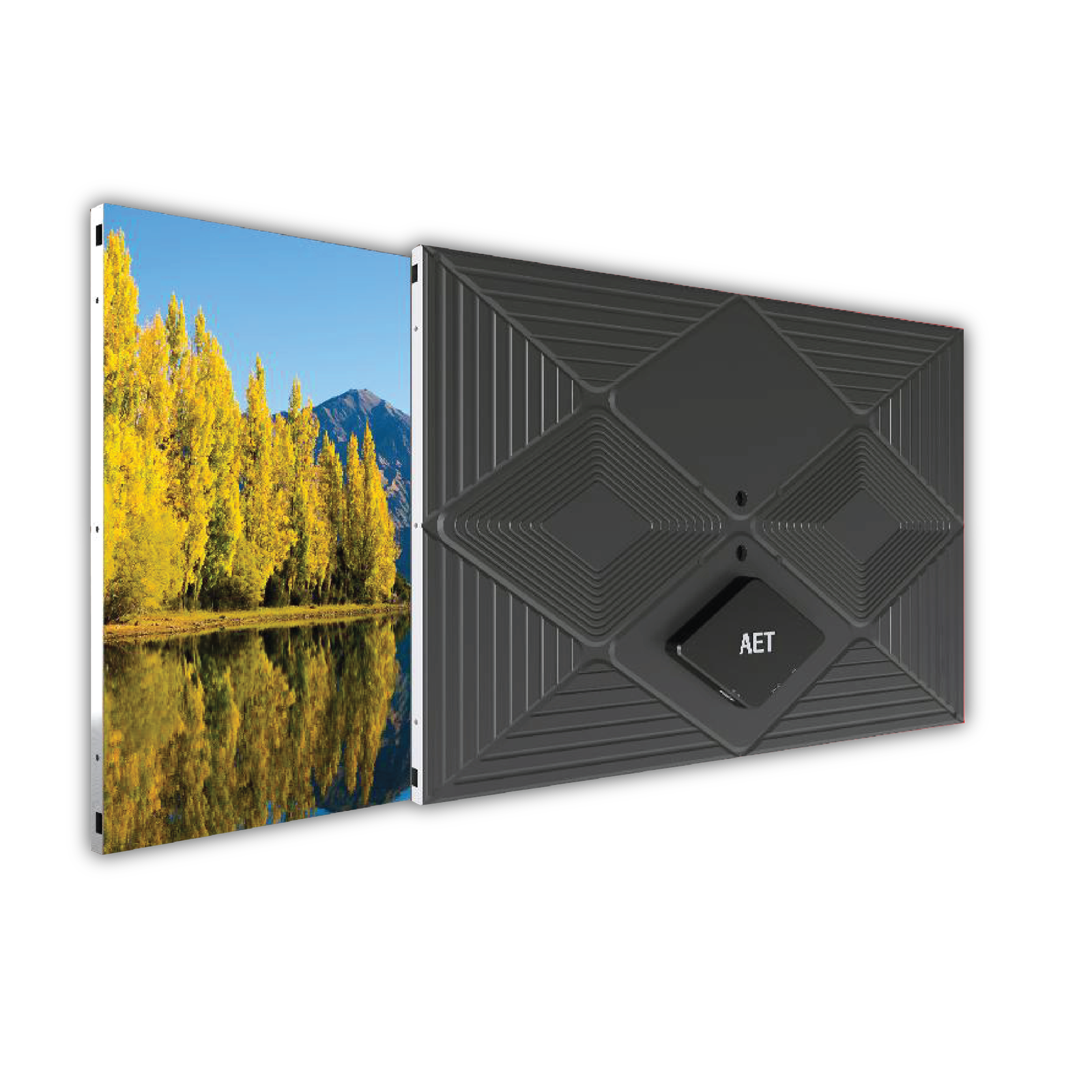

AET AT Series | Ultra-Light, Flexible & Seamless LED Display for Creative Installations

The AT Series from AET Displays is engineered for versatility, combining ultra-thin design, lightweight construction, and superior performance. Designed for both indoor and outdoor applications, the AT Series delivers outstanding visual impact while reducing installation and maintenance effort.

Key Features

• Ultra-Thin & Lightweight: Slim cabinet design ensures quick installation and portability.

• High Strength: Durable aluminium-magnesium alloy frame for stability and safety.

• Energy-Efficient: Advanced power management reduces consumption without compromising brightness.

• Easy Maintenance: Front and rear service access for simplified module replacement.

• Seamless Splicing: Precision die-cast cabinet guarantees a smooth, gapless visual experience.

• Versatile Applications: Ideal for events, exhibitions, retail, advertising, and fixed installations.

Specifications (typical for AT Series models)

• Pixel Pitch: Available in P1.49, P1.06, P1.26, P1.89, P4.8 (model dependent)

• Brightness: Up to 5,500 nits (outdoor) / 1,200 nits (indoor)

• Refresh Rate: ≥ 3,840 Hz

• Cabinet Weight: Approx. 6–20 kg

• Material: Aluminium-Magnesium alloy, ultra-light design

• Protection (IP Rating):

  • Indoor Models: IP40 (front) / IP21 (rear)

  • Outdoor Models: IP65 (front) / IP54 (rear)

• Viewing Angle: 160° (H) × 160° (V)

• Operating Temperature: –20°C to +50°C

• Service Access: Front & rear maintenance supported

• Power Consumption:

  • Average: ~200 W/m²

  • Max: ~600 W/m²

• Lifetime: ≥100,000 hours

Applications

• Indoor/outdoor advertising screens

• Stage and event backdrops

• Exhibition displays

• Sports arenas and stadiums

• Retail and corporate signage
